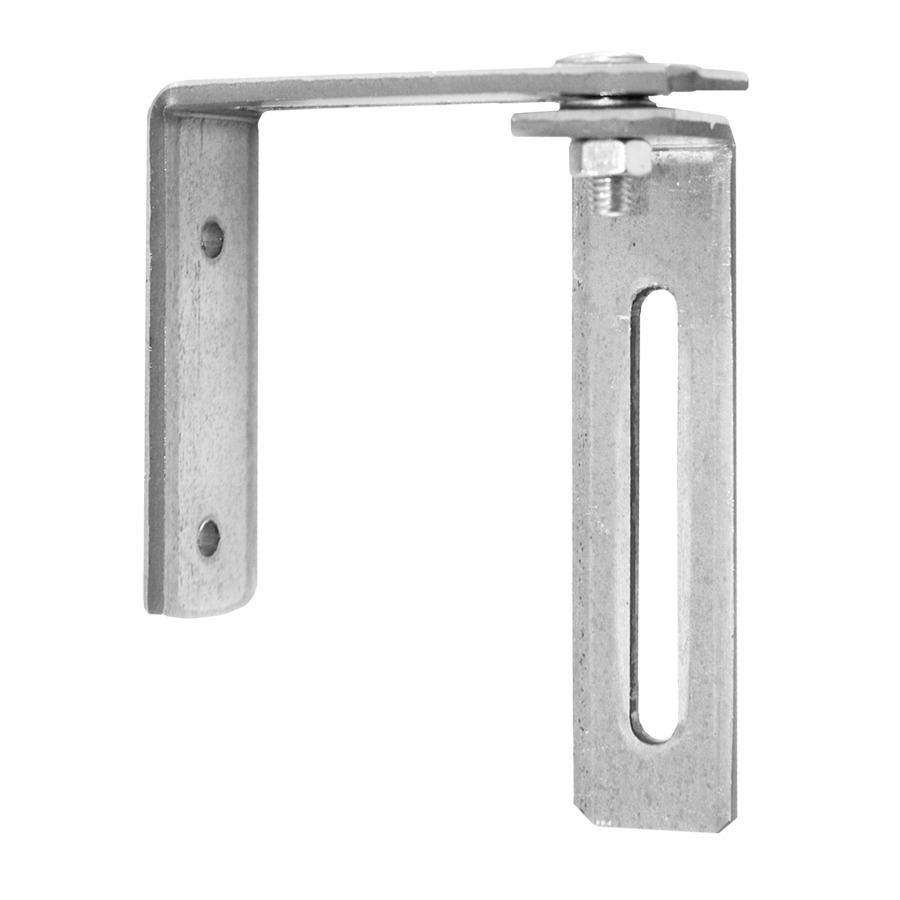

Double metallic PVC channel support

Double metallic PVC channel support.


Manufactured in galvanized steel Z-275, 4.0 mm thick. and half protective coating of +-20 microns.
Equipped with 2 screw M6 x 20, DIN 603, 2 nut M6 DIN 934, y2 washers.
Double regulation in separation of pared(60 mm) and height (60 mm), allowing you to adjust the clearance between the channel and the eave.
Packed in boxes of 100 PC.
Made to order, available in AISI 304 stainless steel of 3 mm. thick.


They are used to attach the PVC channels for rainwater evacuation, to the roof.
