Elbow 90º made Simple wall stainless steel A – 316L of 0.4 mm. thick. Finish: bright and available in diameters from 80 to 300 mm.

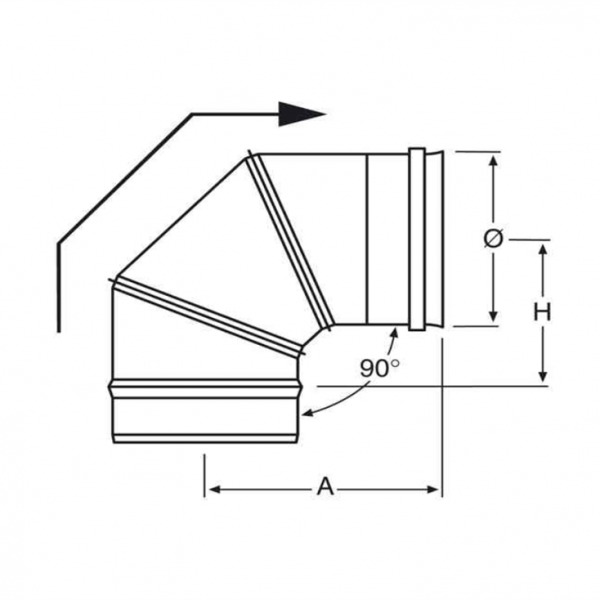

| Ø (mm) | H (mm) | A (mm) |
|---|---|---|
| 80 | 80 | 130 |
| 100 | 95 | 145 |
| 130 | 105 | 155 |
| 150 | 113 | 163 |
| 180 | 130 | 180 |
| 200 | 140 | 190 |
| 250 | 165 | 215 |
| 300 | 190 | 240 |
Features
Wall thickness: 0.4 mm. AISI 316L
Working temperature, up to 650 ° C.
Can be mounted with silicone, for best sealing.
Plug-in system (tongue and Groove).
Possibility to place a connecting flange to secure the connection between modules.
Meets UNE 123001:2009
Product certified according to CE/0099/EN 1856-1
Designations
According to the norm EN 1856-1:
T600 N1 W V2 L50040 G (WITHOUT SEAL)
T160-P1 W V2 L50040 OR 30 (WITH BOARD)
Applications
Recommended for indoor and outdoor facilities.
Other appliances: boilers, stoves, fireplaces, inserts.
